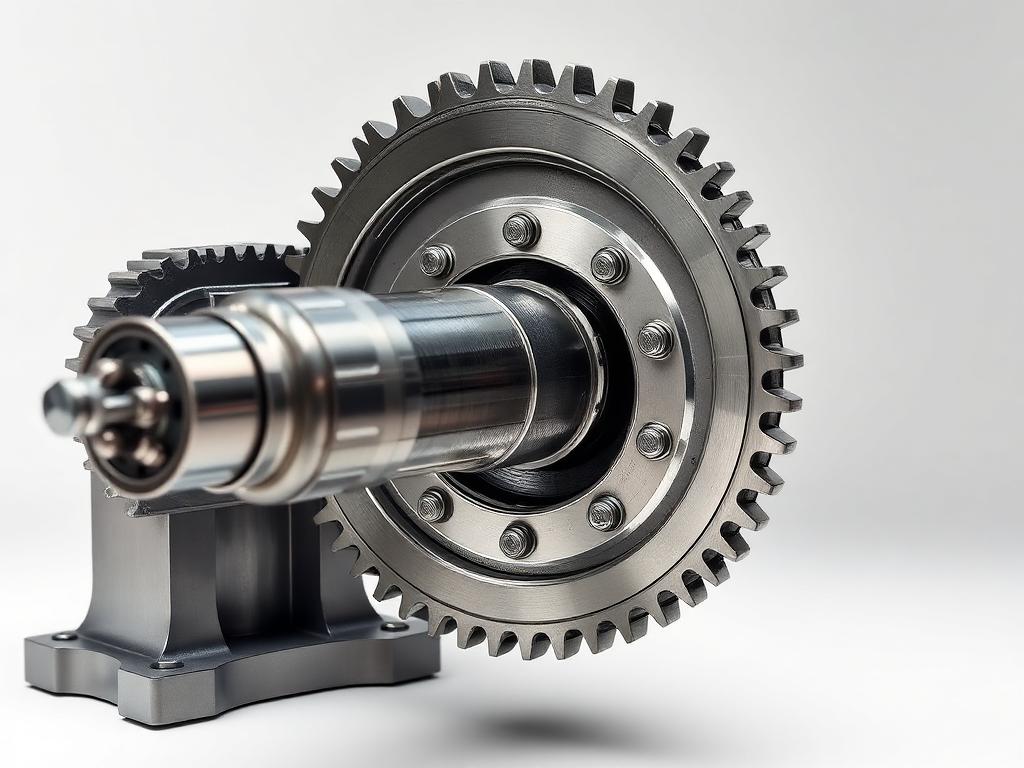

One unit. Ready to install.
Sprocket, shaft, plummer block, bearing block and pedestal — engineered, machined and supplied together. Reduces site fitting time and removes tolerance mismatches between separately-sourced components.
Five matched components, one source of responsibility
Sprocket
Matched to chain pitch, strands and bore
Shaft
Machined to load, deflection and torque spec
Plummer Block
Sealed plummer block with appropriate bearing
Bearing Block
Heavy-duty bearing block, mounting-ready
Pedestal
Welded/cast pedestal sized for the installation
Three standard configurations
Special Sprocket-Shaft Assembly
Complete turnkey solution: Sprocket + Shaft + Plummer Block + Bearing Block + Pedestal
Details→Drive Assembly
Drive-end sprocket-shaft assembly for conveyor / elevator systems
Details→Driven Assembly
Driven-end sprocket-shaft assembly for conveyor / elevator systems
Details→Specify your load.
We'll engineer the chain.
Send pitch, load, environment and operating cycle — our engineering desk returns a matched chain, sprocket or full assembly with material and heat treatment recommendations.
Request Technical Brief
